Whole-Home Water Filtration Installation in Broken Arrow

A homeowner in Broken Arrow purchased a whole-home water filtration system and needed professional plumbing installation.

Our plumber checked the setup requirements and provided an upfront estimate for approval before beginning.

Our crew installed the filtration system using one-inch PEX pipe, expansion fittings, ball valves, and stainless steel flex connectors over a seven-hour period.

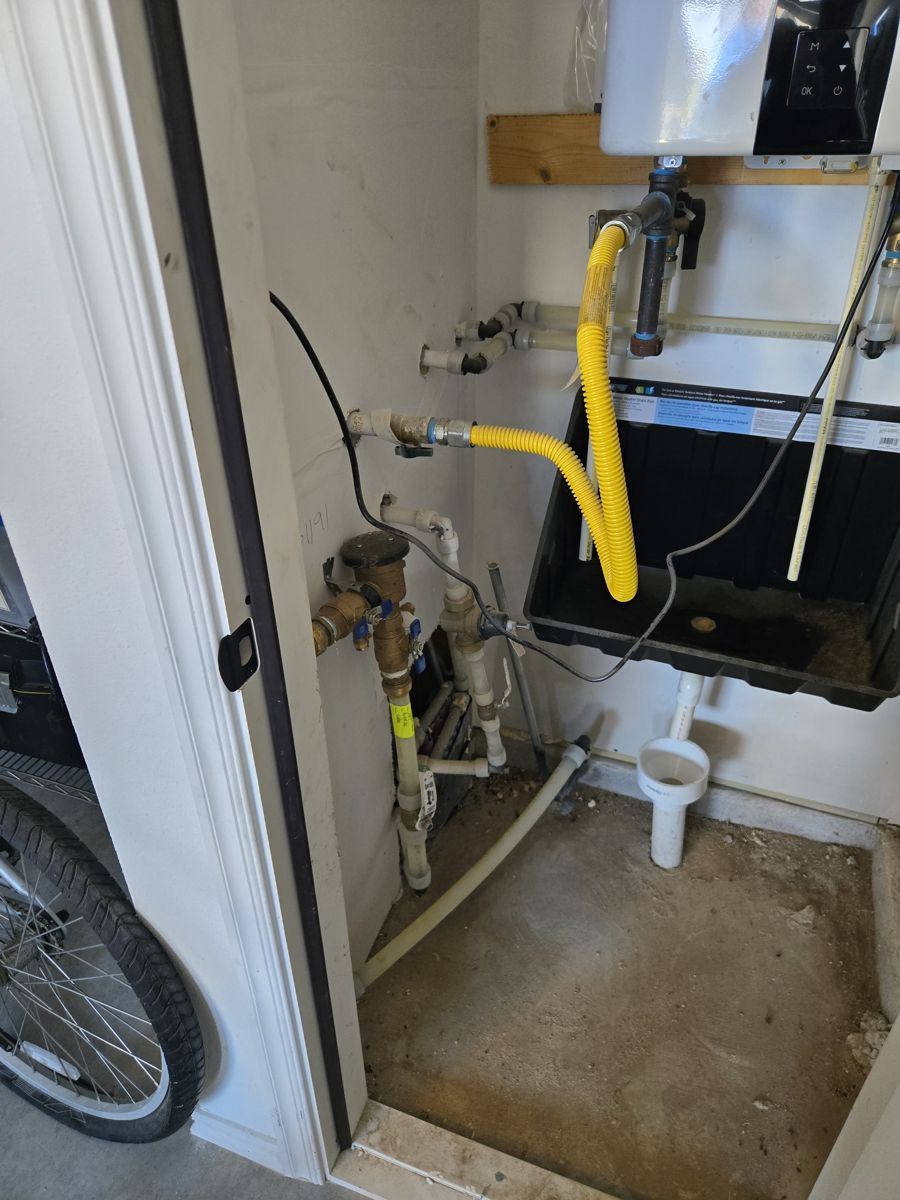

This installation involved a customer-provided KIND whole-house filtration system, including a UV filter. The main water line entered the house through the garage, inside the water heater closet. The available mounting location was on the wall outside that closet. That layout mattered: the plumbing had to bring the incoming water out to the filter assembly and then return it to the house, rather than simply adding a small filter at a faucet.

The installation scope called for opening a small area of drywall to reach the water lines and shutting the house water off before making the connections. The system would be mounted on the available wall, with the incoming and outgoing plumbing connected using the appropriate fittings. The UV portion was part of this same installation, not a separate water heater replacement. Casey and Jared were assigned to the work.

A bypass valve was specifically included for future filter exchanges. That is a useful distinction in this job: the installation was not just about making water pass through the new equipment on the first day. The plumbing arrangement also needed to accommodate later filter changes. The scope described connecting the bypass as part of the piping that served the filter system.

The material list was unusually detailed. It included two three-quarter-inch-to-one-inch expansion couplings, six one-inch expansion elbows, two one-inch expansion tees and three one-inch stainless steel close nipples. It also listed two one-inch female expansion adapters, three one-inch expansion ball valves, one-inch PEX piping and expansion rings. Two one-inch stainless steel flex connectors rounded out the connection materials. These were the supplies listed for this installation, not a standard parts package promised for every home.

The final sequence in the approved work was to turn the water back on and pressurize the filter system, then check the connections for leaks. With the system checked, the water to the house could be opened and the new filtration equipment flushed. Pressurizing and flushing were separate steps in the scope: first checking the new connections, then running water through the completed arrangement.

This was a whole-house connection project built around the equipment the homeowner had already selected. The work description does not supply a water-quality laboratory result, a contaminant-removal measurement or a before-and-after taste comparison. We are not adding those claims to the story. What it does describe is the actual installation layout, the UV component, the bypass provision, the connection materials and the startup checks for this Broken Arrow home.

Getting an approved upfront estimate ensures clear agreement on the plumbing work before installation begins.
